The Greening of St. Clement Schoolyard
Case Study: School Playground in Montreal, Quebec

St. Clement School - finished

The St. Clement School is located at 4770 Rue la Fontaine, in Montréal. Like many schools across North America, has a large asphalt playground used by children for exercise and games. When the local school board decided to do a retro-fit of the grounds, one goal was to provide more shade and a greener space for the children giving them a place close to nature while also reducing the heat in this part of the city.

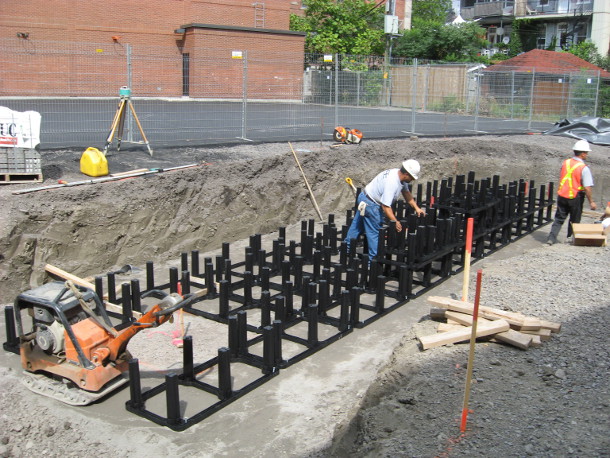

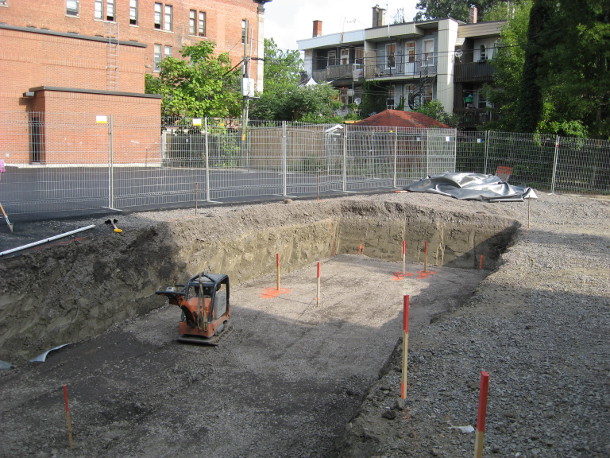

St. Clement School - excavationSt. Clement School - first layer of Silva Cells

This demonstration project was initiated by Nathalie Bédard landscape Architect/rainwater specialist at Solutions Éco-Smarts and Hélène Godmaire, at the time director of Great Lakes United, a non-profit agency that advocates for water protection in the Great Lakes and St. Lawrence watersheds. GLU, along with INSPQ, contributed money toward the project.

Charlotte Gaudette, a landscape architect involved in many school ground redesigns, and Marie Duguay, an engineer at Vinci Consultant specializing in bioretention and stormwater. collaborated closely on the design. They took this opportunity to innovate and show how to integrate stormwater into the design from the beginning of the process. Because schoolgrounds are often paved to facilitate maintenance, they needed to find a solution that could green the space without reducing the play surface, and increase stormwater storage without a burden on the ground maintenance.

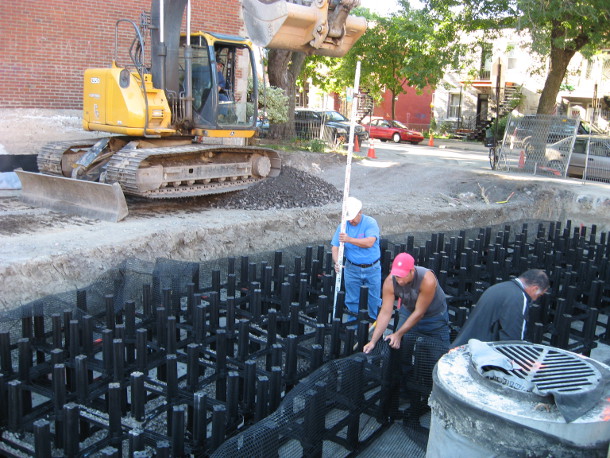

St. Clement School - lining the perimeter with geogrid

The site design for the new playground called for the use of Silva Cells to supply the new trees planted in the school yard with adequate amounts of soil. In addition to growing large, mature trees, Nathalie Bédard’s stormwater vision was key in convincing the main engineer that they can also benefit from using Silva Cells for stormwater management capability. The soil volume contained in the Cell system will be used to capture stormwater on-site in two catchment areas on the playground, one of which is 1,000 square meters, and a second which is 445 square meters.

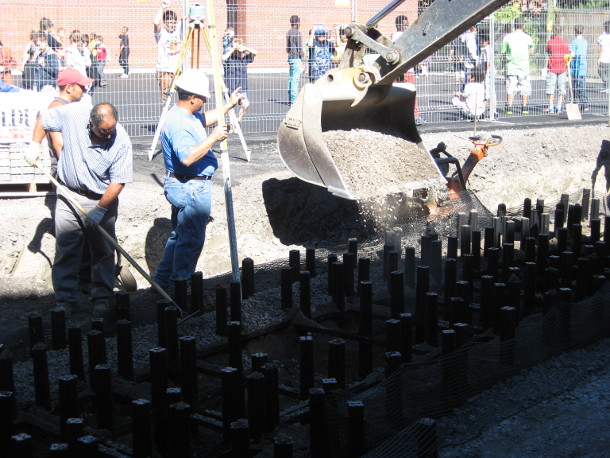

St. Clement School - putting in the soil

As the trees grow, the St. Clement schoolchildren will have an increasingly pleasant place to spend time outdoors. Interacting with nature will become an integral part of the school experience. The design of the schoolyard will also serve as a green infrastructure demonstration site, showing the City of Montréal and other Great Lake municipalities how, with adequate amounts of soil, tree canopy can be increased and stormwater can be treated on-site.

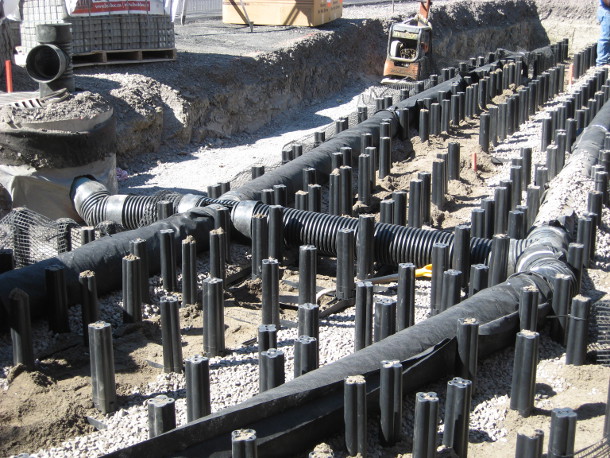

St. Clement School - stormwater distribution pipesLastly, the design of the St. Clement schoolyard will serve as a green infrastructure demonstration site, showing the City of Montréal and other Great Lake municipalities firsthand how, with adequate amounts of soil, tree canopy can be increased and stormwater can be treated on-site as a source control before entering the lakes and rivers of the Great Lakes and St. Lawrence River watershed.

Installation Summary
Soil volume per tree: 11.9 m3 / 423 ft3 (Area 1), 10.9 m3 / 388 ft3 (Area 2)
Stormwater treatment capacity: approx. 9.5m3 (2,500 gallons /0.0077 acre feet) [Area 1]; approx. 4.4 m3 (1,150 gallons/ 0.0035 acre feet) [Area 2]
Number of Silva Cells: 75 decks, 150 frames (Area 1); 34 decks, 68 frames (Area 2)
Catchment area: 1,000 m2 / 10,763 ft2 (Area 1); 445 m2 / 4,789 ft2 (Area 2)
Number of trees: 6
Client: Montréal School Board
Project designers: Solutions Eco-Smarts, Mousse Architecture de Paysage, and Nathalie Bedard
Contractor: Les Paysagistes Damiano Inc. and Les Excavations D.C.P.
Engineers: Vinci Consultants
Installation date: August 2012

This case study, along with many others, is available for download on the DeepRoot website.
