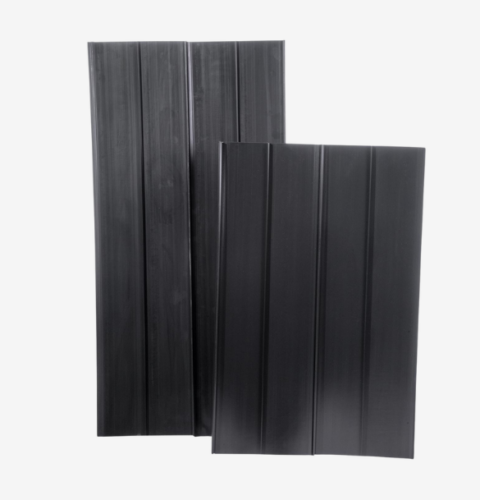

36″ or 48″ high x 24″ wide panels are designed for slopes, retaining walls, or anywhere extra depth is required for hardscape protection. These sizes are ideal for linear applications and in large perimeter surround plantings*.
UB 36-2/UB 48-2 Uses
- Utility Corridors
- Slopes
- Retaining Walls
- Raised Planters
- Cemeteries
Features
- Instant assembly: panels slide together
- Universal Guide: Use in linear or large perimeter* surround applications
- Sizing adjustable in 1′ (30.5 cm) modules
- 1/2" (1.2 cm) raised 90° molded root-deflecting ribs
- Combine with UB 24-2 or UB 18-2 where terrain requires varying depths
- Made in USA
- *Large perimeter applications: minimum 8′ (2.4 m) diameter planting area using 12 panels
Assembly
UB-36 and UB-48 panels easily slide together using a C-and-T joint. These panels can be used in a uniform depth, or with other size panels for project sites with variable depths.
Panel Dimensions
UB 36-2 : 36″ H x 24″ W (91.5 cm x 61 cm)
UB 48-2 : 48″ H x 24″ W (122 cm x 61 cm)
Materials and Manufacturing Process
- 100% reprocessed polyethylene
- Homopolymer Polyethylene of 0.080" ( 2.032 mm) thickness extruded
- Made in USA
Packaging
UB 36-2: 14 Panels (28 linear feet / 8.53 m) per carton
UB 48-2: 10 Panels (20 linear feet / 6.1 m) per carton
20 cartons per pallet, approximately 45 lbs. (20.41 kg) per carton
Specifications Properties
TEST |
ASTM TEST METHOD |
VALUE COPOLYMER POLYPROPYLENE |
Tensile stress @ yield |
D638 |
3800 PSI (26,200 kPa or kN/m²) |
Elongation @ break% |
D638 |
10% |
Tensile Modulus |
D638 |
155,000 PSI (1,068,687 kPa or kN/m²) |
Notched Izod Impact |
D256A |
0,4-4,0 |
Flexural Modulus |
D790 |
145,000 PSI (999,739 kPa or kN/m²) |
Hardness Shore |
D2240 |
P66 |
