Silva Cells Give Long Life to Street Trees on a New Green Boulevard

In 2008 the City of Sunderland released their comprehensive Central Area urban design strategy, outlining their vision for revitalizing the city centre by improving pedestrian accessibility, creating a people-focused identity, enhancing the public realm, and bringing forward major regeneration projects that would help to attract investors and improve quality of life for residents,workers, and visitors.

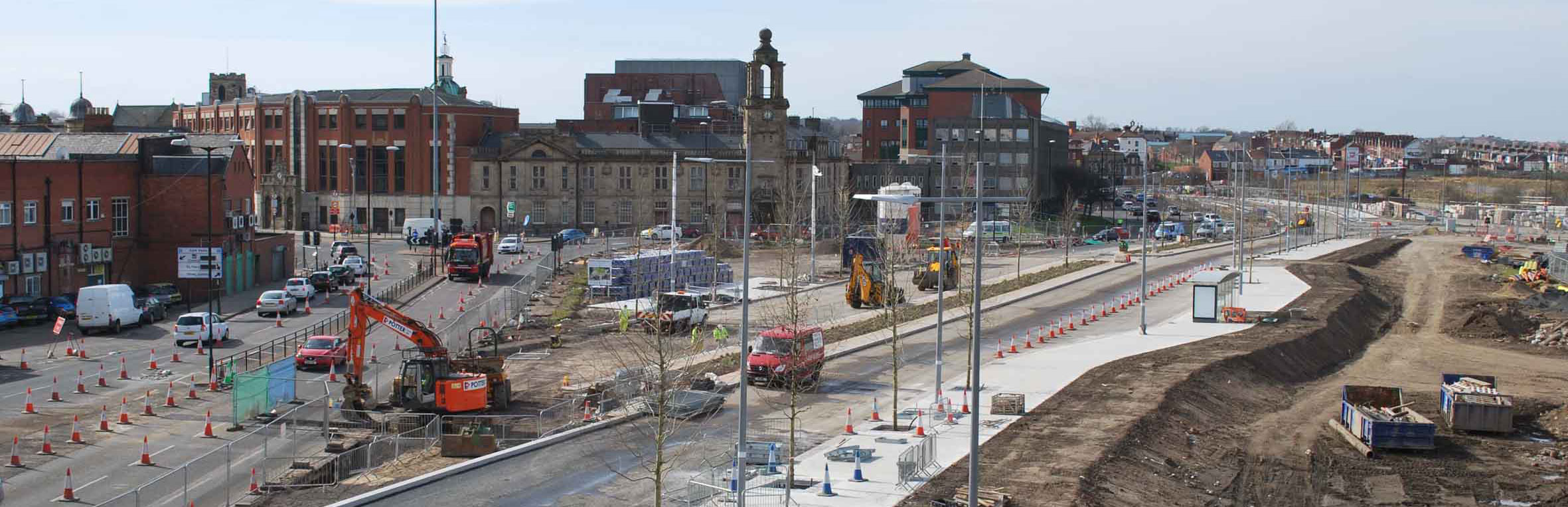

A major factor in realizing this vision was the City’s acquisition in 2011 of the old Vaux brewery site, a 28-acre brownfield that had been unused for the previous decade and was now primed for redevelopment as a new business district. Central to this redevelopment project was the realignment of St. Mary’s Way, a 500m pedestrian length portion of the city’s central ring road, to create a straighter and more direct route between the city’s retail core and riverfront to the new Vaux site. The realignment allows the road’s current path to transform from a traffic dominated highway to a pedestrian friendly, tree-lined boulevard.

Street trees play a significant role in the redevelopment aspirations of Sunderland, and especially on the site of St. Mary’s Way on the ring road. The Sunderland Central Area urban design strategy document states that “tree planting should be a priority along the ring road as part of its transformation into a ‘Great Street,’” referring to the impact street trees would have on increasing the vitality of the site and encouraging pedestrian acti vity, but without disrupti ng the street’s functioning as a key traffic route

Large specimen trees would help to att ract businesses as much as pedestrians to the new development and gateway. But the City Council wanted not only to plant the trees near the roadways, but also to ensure their prosperity for future generati ons - having a goal for the tree planti ng scheme to be successful for at least fifty years. Silva Cells were specifi ed for the project in order to meet these needs. James Gordon, Senior Landscape Architect for the Sunderland City Council, was instrumental in the decision to bring the Silva Cell system into the project: “To assist us in delivering a new road realignment through Sunderland City Centre,DeepRoot played a key role in transforming the character of the highway network into a traditional tree lined avenue, allowing us to plant large specimen trees under footways and in close proximity to the road.”

Funded in part by £2.34 million from the European Regional Development Fund and a further £2.5 million from the Growing Places Fund, the realignment and enhancement of St. Mary’s Way is a landmark achievement in the realizati on of the City’s strategic vision for the future. According to James Gordon, “The creati on of this new ‘green’ boulevard is seen as a crucial element in meeting the aspirati ons of potential investors and encouraging development whilst becoming a welcoming and accessible city centre approach, enhancing links to the port of Sunderland and the future new Business Quarter.” The flexibility of the Silva Cell system also permitt ed Gordon and the design team to work with the existi ng uti liti es and other features of the site while sti ll providing adequate void space beneath the road to give the trees access to the nutrients required for a long life. Gordon explains: “In maximising the soil volume per tree whist providing suitable load bearing capacity, we are confi dent that we are giving the trees the best possible chance to thrive in this urban environment. DeepRoot’s design service allowed us to overcome complex constraints such as existi ng uti liti es, new surface water drainage systems and dealing with trees on such a large scale.”

And it is indeed a large scale: altogether, 1,772 frames and 866 decks were installed in a two layer system along the boulevard, bringing 16.183 of soil volume to each of the 31 newly planted trees. Through this ambitious creati on of a new, tree-lined pedestrian-friendly passageway, Sunderland’s vision of a vibrant and prosperous city centre is one tremendous step closer to realization.

Installation Summary
Average soil volume per tree: 16.8 m3 (533 ft3)
Number of Trees: 31(in Silva Cells)
Total Silva Cells: 1,772 Frames, 866 decks
Installation Date: March 2014
Installation type: Trees
Project Site: Plaza, Streetscape
Project Designer: Sunderland City Council
Contractors: Balfour Beatty

For more information, please contact Steve Chatwin–Grindley (
